Hengshui Minai Rubber & Plastic Technology Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel braided gas hose in China. We are committed to providing high quality customized service and OEM/ODM service to global clients. Please feel free to wholesale bulk durable stainless steel braided gas hose made in China here from our factory. If you have any enquiry about pricelist, please feel free to email us.
Products Description

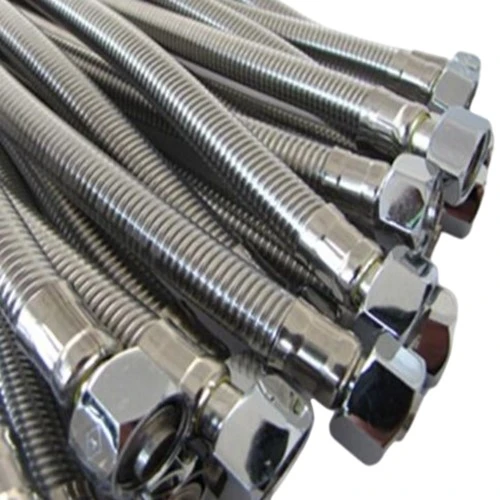

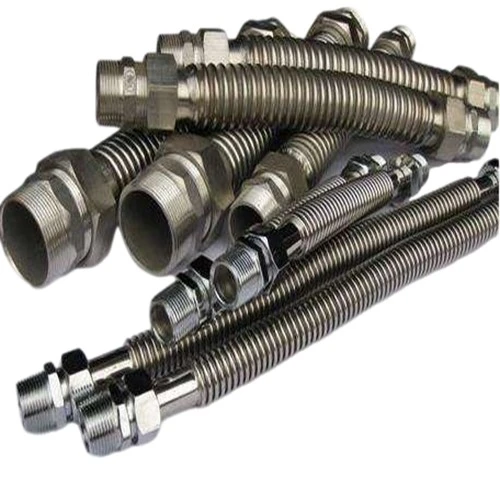

This series of stainless steel braided gas hoses adopts integrated corrugated molding technology with food-grade 304 stainless steel. The inner core pipe has uniform wall thickness, no welds, no pinholes and excellent sealing performance, eliminating hidden dangers of gas leakage. The outer high-density stainless steel braided mesh tightly wraps the pipe body, which is wear-resistant, impact-resistant, tensile and pressure-resistant, and can resist external extrusion, friction and rodent biting. It completely solves the safety hazards of ordinary rubber hoses such as easy aging, cracking, falling off and penetration and air leakage. The super flexible pipe body can be bent with a small bending radius, suitable for complex working conditions such as narrow cabinets, equipment dead angles and misplaced installation. It will not be flattened or blocked during installation. The product has passed multiple air tightness, pressure resistance and tensile tests, and is produced in strict accordance with the ISO9001 quality management system. It is weather-resistant, corrosion-resistant and has an ultra-long service life, suitable for full-scene gas transmission in household, commercial and industrial fields with stable safety and compliance durability.
Product Parameters
|
Parameter |
Details |
|
Product Name |
Stainless Steel Braided Gas Hose |
|
Product Material |
Inner 304 stainless steel corrugated core pipe + outer 304 stainless steel braided layer |
|
Conventional Specifications |
DN10, DN12 (customizable non-standard pipe diameter and length) |
|
Conventional Length |
200mm-3000mm (arbitrary customization supported) |
|
Rated Working Pressure |
0.05MPa |
|
Burst Pressure |
≥15MPa |
|
Temperature Range |
-29℃ ～ +82℃ |
|
Applicable Media |
Natural gas, liquefied gas, coal gas, civil combustible gas |
|
Core Features |
Explosion and leakage proof, rat bite resistant, aging resistant, flexible and wear-resistant, pressure and tensile resistant, safe and flame retardant |
|
Application Scenarios |
Household gas stoves, gas water heaters, commercial kitchen utensils, industrial gas equipment pipeline connection |
|
Service Life |
More than 8 years, far longer than traditional rubber hoses |
Product Advantages
Double-layer Explosion-proof Structure, Zero Air Leakage Safety Guarantee
Adopting a double-layer protection structure of inner sealed corrugated core pipe and outer protective braided mesh, there are no welding breakpoints and no leakage dead angles, and the explosion-proof and pressure-resistant performance is far higher than the industry standard. It effectively eliminates potential safety hazards such as gas penetration, cracking and air leakage, and interface falling off, avoiding gas leakage accidents from the source with extremely high safety factor.
Rat Bite and Wear Resistant, Anti-external Damage
The outer high-density stainless steel braided layer has high hardness and strong toughness, which can effectively resist rodent biting, hard object extrusion and friction collision. It will not be broken or damaged like rubber hoses, adapting to complex environments such as kitchens and equipment rooms to protect pipeline safety all day long.
Aging and Weather Resistant, Ultra-long Service Life
The all-stainless steel material is non-oxidizing, non-hardening and non-corrosive, resisting high temperature baking, humid water vapor and lampblack erosion. It will not harden, brittle, crack or age after long-term use. The service life is more than 8 years, avoiding frequent replacement and greatly reducing maintenance costs and safety risks compared with traditional rubber hoses.
Super Flexible and Easy Installation, Adaptable to Complex Working Conditions
The hose body has excellent flexibility with a small bending radius. It can be bent and twisted arbitrarily without pipe flattening or air blockage, adapting to complex installation scenarios such as narrow cabinets, equipment misalignment and corner dead angles. No special tools are required for convenient installation, and it is highly versatile and compatible with various gas equipment interfaces.
Pressure and Tensile Resistant, Stable and Reliable Performance
The product has passed strict tensile and pressure tests, and will not deform or decouple under high-strength tension. The burst pressure is much higher than the rated working pressure of gas. It can buffer equipment vibration and pipeline stress during operation, with stable long-term performance without pressure relief or leakage.
Product Q&A
Q: What are the advantages of stainless steel braided gas hose over ordinary rubber gas hose?
A: Compared with traditional rubber hoses, stainless steel braided gas hoses will not age, harden, crack or leak gas. They have the advantages of rat bite resistance, explosion proof, high and low temperature resistance and corrosion resistance, eliminating the hidden dangers of easy penetration, damage and short service life of rubber hoses. The service life is several times that of ordinary rubber hoses with higher safety factor, making it the preferred product for gas pipeline upgrading.
Q: Can this stainless steel braided gas hose be used for household gas for a long time?
A: It is fully suitable for household scenarios. The product complies with gas safety standards, with excellent air tightness, explosion and leakage resistance, high temperature and lampblack resistance. It is suitable for household equipment such as gas stoves and gas water heaters. It operates stably for a long time without frequent replacement, ensuring safer household gas use.
Q: Will the hose be blocked, deformed or damaged after bending?
A: No. Adopting super flexible corrugated structure and high-strength braided protection, the product has excellent bending performance. Normal bending and displacement will not cause pipe flattening, air blockage, deformation or damage. It adapts to various installation angles and narrow spaces without affecting normal gas transmission.
